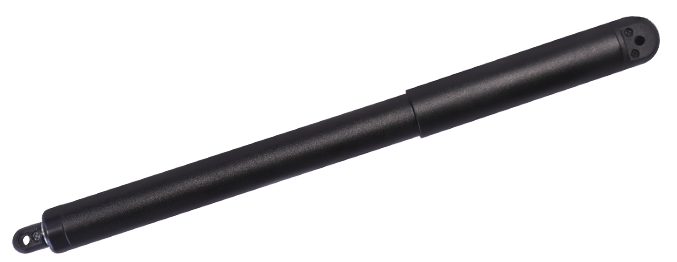

With a maximum diameter of just 16mm, the ANT-16 is designed for tight spaces where precision and compactness are key.
Perfect for space-constrained applications: Ideal for use in inspection robots, navigation lights, and other devices requiring efficient performance in limited spaces.
Voltage(V) | 12V | IP rating | IP65 |
No-load current(A) | ≤0.07A | 5~40(℃) | |
Load current(A) | ≤0.25A | Storage temperature(℃) | 5~40(℃) |
Max. power(W) | 5W | Noise on load (dB) | 65dB |
Material of outer tube | 6063Aluminium | Backlash (mm) | ≤0.4 |
Material of lead screw | Trapezoid,Steel | Colour | Black |
Material of piston rod | 304 stainless steel | Certification | CE |
Material of the nut | Plastic | Wire connection | Bare wire/4 pins connector |
Working duty(S2) | Work 2 minutes and rest 18 minutes | End mounting | O type |
Life time(cycles) | ≥10K | Wire length(m) | 0.5 |
Max Load(N) | 20N | 50N | Stroke(mm) | 50mm | 100mm |
Self-locking Force(N) | 30N | 75N | Weight(kg) | 0.1 | 0.2 |
No-load Speed(mm/s) | 15mm/s | 7.5mm/s | Min Stroke(mm) | 20mm | |
Load Speed(mm/s) | 10mm/s | 5mm/s | Max Stroke(mm) | 100mm | |
l Customized stroke lengths are available.
l The stroke’s precision is ±2 mm.
| ANT-16 Min. Install dimension | (mm) | Limit Switch | Hall sensor |
L+S | 100+S | 120+S | |
A | 75 | 95 |
Limit switch
Control boxes available
Cable lengths
Stroke lengths
Front and rear fixture
Installation size
RAL colors
Accuracy of speed or current: ±15%, in general, applications in the dashed are not recommended.
