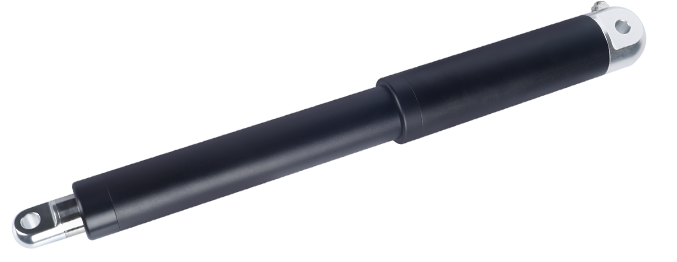

ANT-38 is an upgraded version of the ANT-35, now featuring internal limit switches for precise end-stop control.
With its enhanced end-limit design, the ANT-38 addresses the limitations of the ANT-35, ensuring better protection at both ends and providing a straight-moving shaft for reliable operation.
This slim, inline actuator boasts a robust design, high efficiency, and is equipped with a hall sensor for precise positioning and synchronous functions.

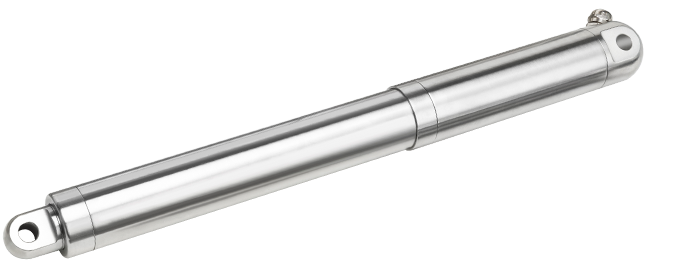

A stainless steel version is available, making it an ideal choice for marine applications and harsh environments.
Perfectly suited for applications in sun shading systems, RVs, rehabilitation equipment, and industrial automation.
Voltage(V) | 12V | 24V | IP rating | IP66/IP67M |
No-load current(A) | ≤0.7A | ≤0.35A | Operating temperature(℃) | -20~60(℃) |
Load current(A) | ≤3.8A | ≤1.8A | Storage temperature(℃) | -40~70(℃) |
Max. power(W) | 50W | Noise on load (dB) | 60dB | |
Material of outer tube | 6063Aluminium/316 stainless steel | Backlash (mm) | 0.5-1 | |
Material of lead screw | Trapezoid,Steel | Colour | Black/Sliver | |
Material of piston rod | 316 stainless steel | Certification | CE,RoHS | |
Material of the nut | Engineering plastic | Wire connection | Bare wire/4 or 6 pins connector | |
Working duty(S2) | Work 2 minutes and rest 18 minutes | End mounting | O type | |
Life time(cycles) | ≥10K | Wire length(m) | 1.5 | |
Max load | 100N | 300N | 400N | 600N | 800N | 1200N | 1800N | 2300N |
Self-locking force | 150N | 600N | 600N | 1600N | 1600N | 1800N | 3600N | 3450N |
No-load speed(Normal) | 35mm/s | 25 mm/s | 18 mm/s | 12 mm/s | 12 mm/s | 6.8 mm/s | 4.5 mm/s | 3.5 mm/s |
Load speed(Normal) | 30 mm/s | 17 mm/s | 14 mm/s | 9 mm/s | 8 mm/s | 5 mm/s | 3 mm/s | 2.5 mm/s |
No-load speed(Low noise) | 25 mm/s | 25 mm/s | 16.5 mm/s | 13 mm/s | 8.5 mm/s | 5mm/s | 3.3mm/s | 3.3mm/s |
Load speed(Low noise) | 23 mm/s | 20 mm/s | 14 mm/s | 10.5 mm/s | 7 mm/s | 4.5mm/s | 3 mm/s | 2.5mm/s |
Stroke(mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
0.85 | 0.95 | 1.05 | 1.15 | 1.25 | 1.35 | 1.45 | 1.65 |
lPush only function is optional.
lOutput limit switches wires is optional.
lCustomized stroke lengths are available.
lThe min stroke:20mm, the max stroke:500mm.
lThe stroke’s precision is ±2mm.

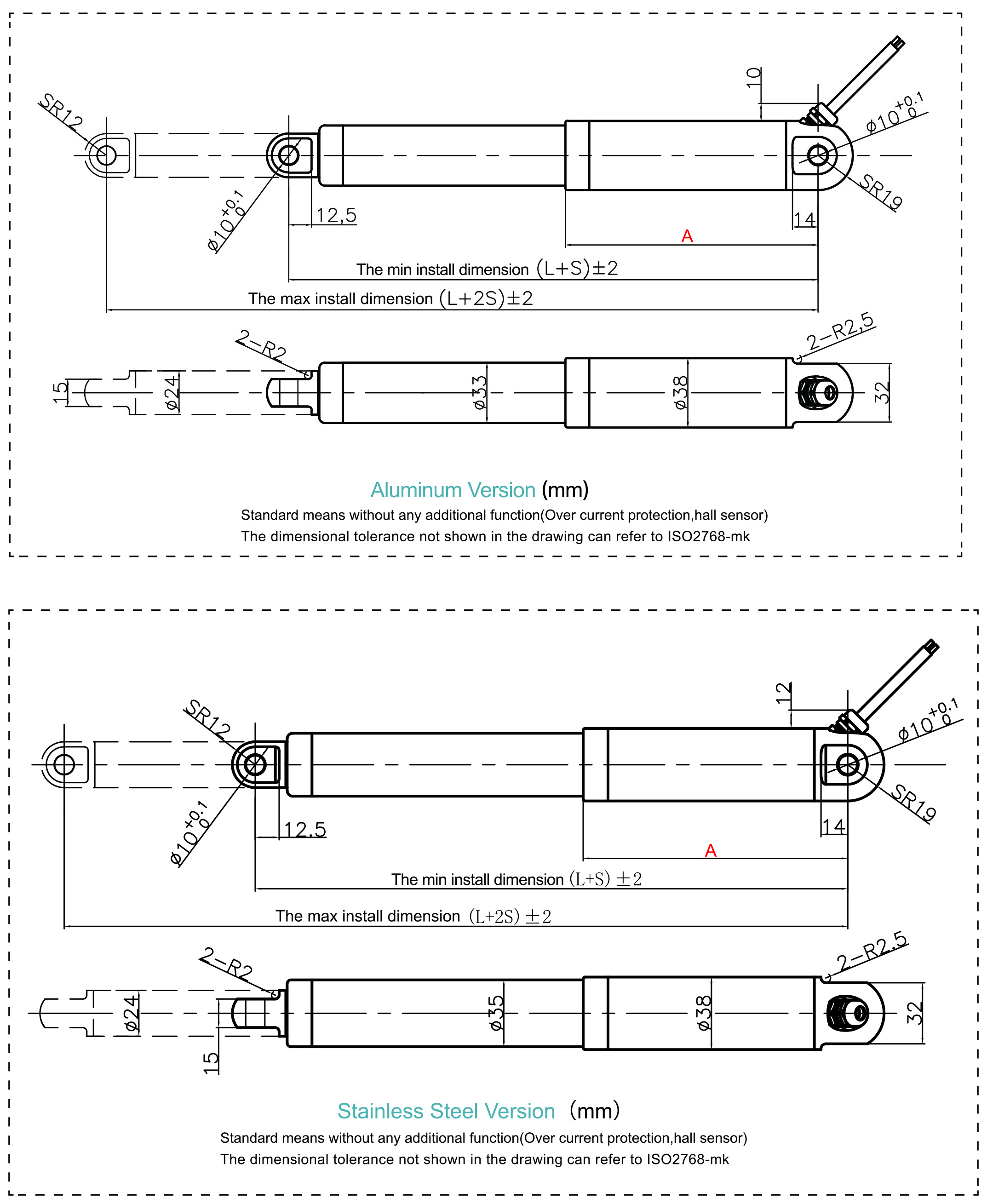

ANT-38(Stroke≤400mm) Min. Install dimension |
(mm)
| Limit switches | Hall sensor | Over current protection | |||
Normal/ Waterproof | Low noise | Normal/ Waterproof | Low noise | Normal/ Waterproof | Low noise | ||
≤800N | L+S | 200+S | 210+S | 220+S | 220+S | 220+S | 230+S |
A | 128.5 | 138.5 | 148.5 | 148.5 | 148.5 | 158.5 | |
＞800N | L+S | 210+S | 220+S | 230+S | 230+S | 230+S | 240+S |
A | 138.5 | 148.5 | 158.5 | 158.5 | 158.5 | 168.5 | |
ANT-38(Stroke＞400mm) Min. Install dimension |
(mm)
| Limit switches | Hall sensor | Over current protection | |||
Normal/ Waterproof | Low noise | Normal/ Waterproof | Low noise | Normal/ Waterproof | Low noise | ||
≤800N | L+S | 235+S | 245+S | 235+S | 245+S | 235+S | 245+S |
A | 148.5 | 158.5 | 148.5 | 158.5 | 148.5 | 158.5 | |
＞800N | L+S | 245+S | 255+S | 245+S | 255+S | 245+S | 255+S |
A | 158.5 | 168.5 | 158.5 | 168.5 | 158.5 | 168.5 | |
lNoise level 56dB for the low noise version.
lFor IP67M/IP69K actuators, the min. install length will be 20mm longer.
Limit switch
Control boxes available
Cable lengths
Stroke lengths
Front and rear fixture
Installation size
RAL colors

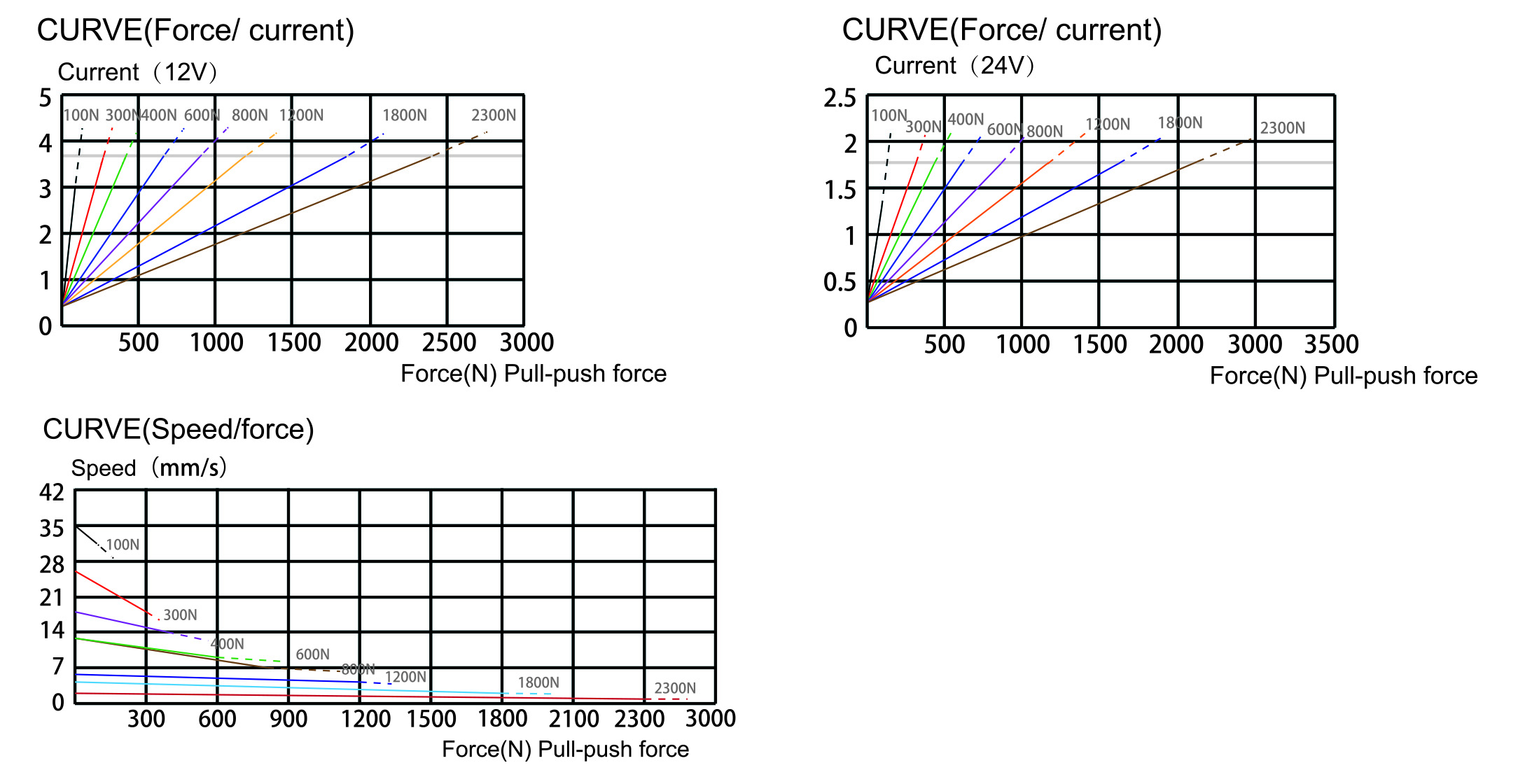

Accuracy of speed or current: ±15%, in general, applications in the dashed are not recommended.
