The ANT-26N is an enhanced version of the original model, offering advanced features such as internal limit switches with overcurrent protection or hall sensors.
With a compact 26mm diameter and a powerful 500N push/pull force, the ANT-26N is an ideal solution for applications requiring high force in confined spaces. Its IP66/IP67 waterproof rating ensures reliable performance in outdoor environments, even under harsh conditions.
The ANT-26N is perfectly suited for a variety of applications, including:motorized louver windows,bioclimatic pergolas,power wheelchairs and inspection robots.
This actuator delivers the perfect balance of compact design, durability, and functionality for demanding projects.
Voltage(V) | 12V | 24V | Duty cycle | Work 2 minutes and rest 18 minutes |
No-load current(A) | ≤0.4A | ≤0.25A | Lift time | |
Load current(A) | ≤1.3A | ≤0.7A | -20~60(℃) | |
Max. power(W) | 14.5W | Storage temperature(℃) | -20~60(℃) | |
Stroke | 20-200mm(can be customized) | Material of lead screw | #45 steel | |
Limit switches | Built-in | Material of push rod | SUS316 | |
Noise level on load | ≤62dB | Material of push nut | Engineering plastic | |
IP rating | IP66/IP67/IP69K | Stand color | Black | |
Blacklash | 0.3mm | Stand cable length | 1.5m(can be customized) | |
Options | Over current protection, Hall sensor feedback (installation length 190+S) | Certification | CE, RoHS | |
Stroke(mm) | 50 | 100 | 150 | 200 |
Weight(kg) | 0.3 | 0.35 | 0.4 | 0.45 |

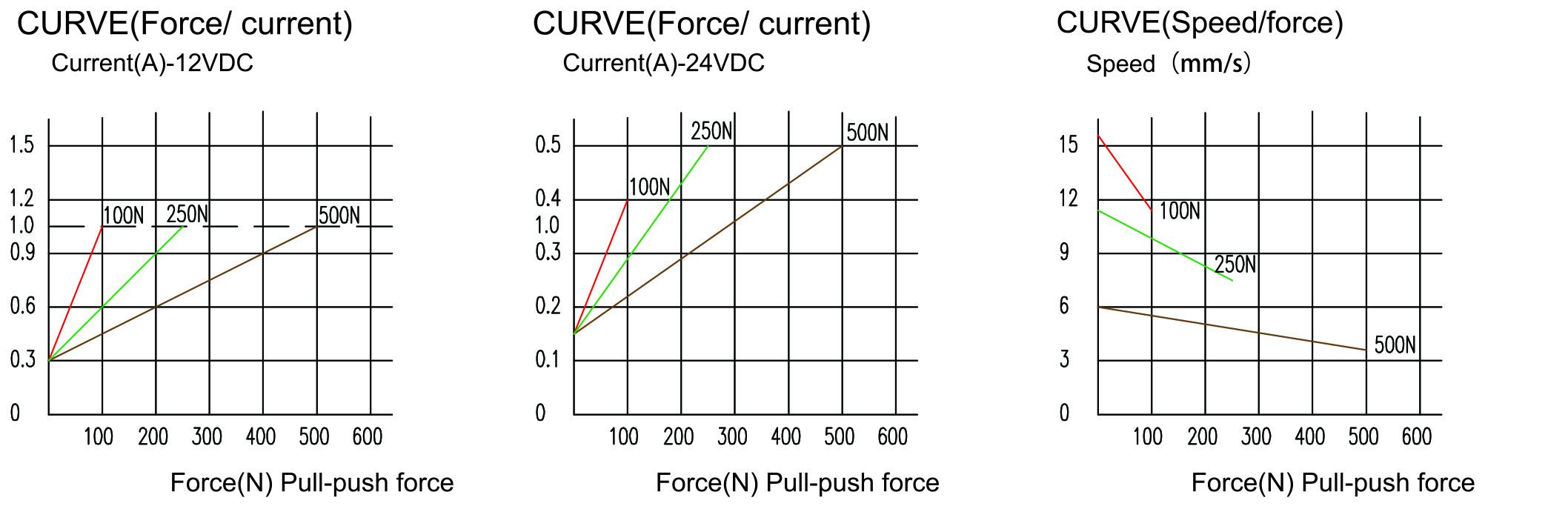

FORCES AND SPEEDS
Push force | Full force | Self-locking force | Speed on load | No load speed |
100N | 100N | 150N | ≥9.5 | 16 |
200N | 250N | 375N | ≥6 | 11 |
500N | 500N | 500N | ≥3.2 | 6 |

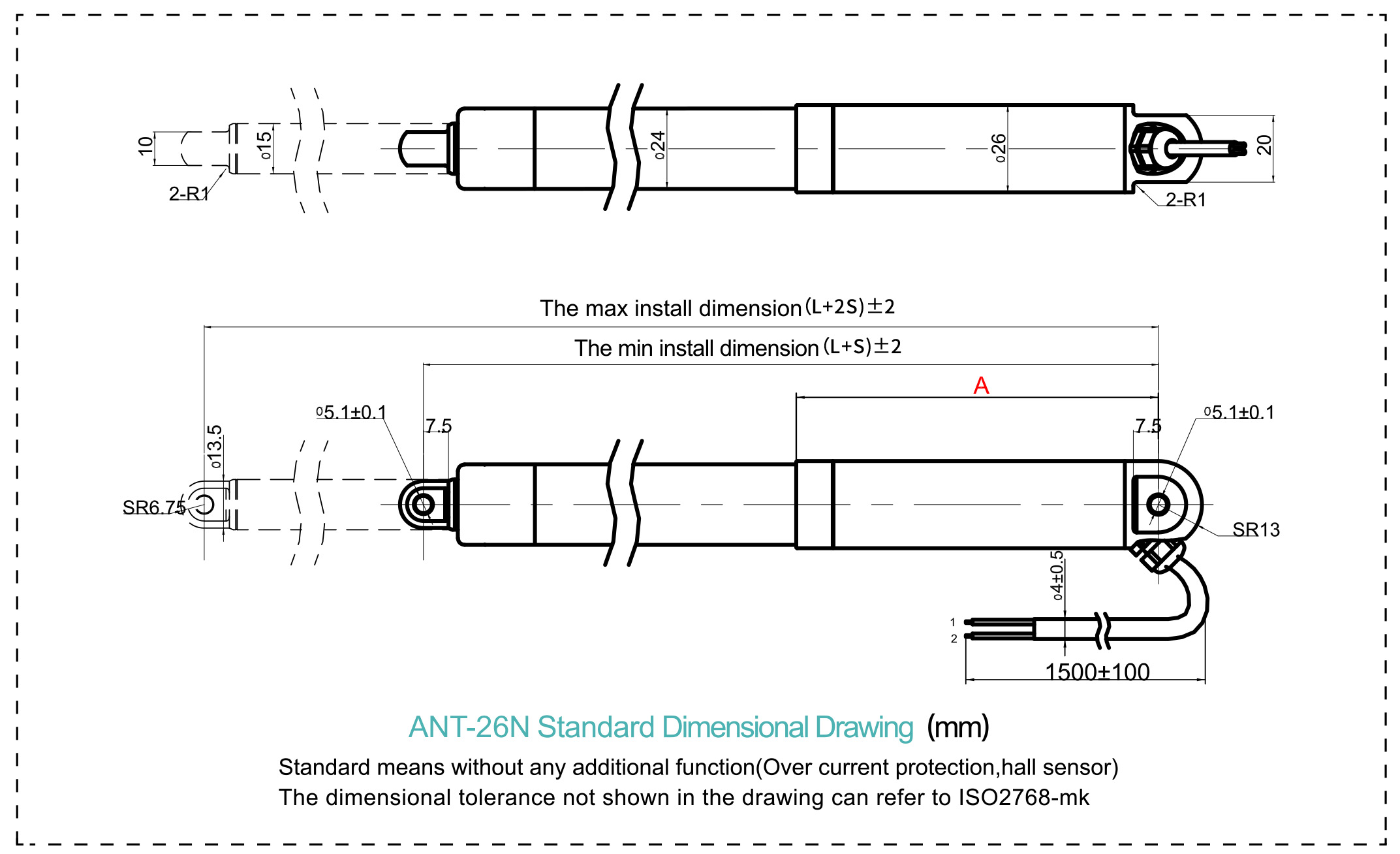

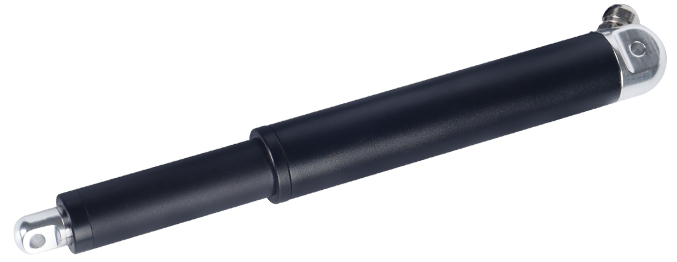

ANT-26N(AL) Min. Install dimension | (mm) | Limit Switch | Limit Switch +Hall sensor | Limit Switch +Over current protection | Limit Switch +Signal line output |
L+S | 170+S | 190+S | 190+S | 175+S | |
A | 108.5 | 128.5 | 128.5 | 113.5 |
- “s” is for stroke.
- For IP67/69K actuators, the min. install length will be 15mm longer.

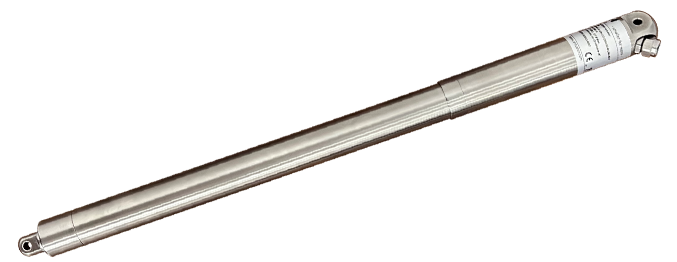

ANT-26N(SS) Min. Install dimension | (mm) | Limit Switch | Limit Switch +Hall sensor | Limit Switch +Over current protection | Limit Switch +Signal line output |
L+S | 185+S | 205+S | 205+S | 190+S | |
A | 108.5 | 128.5 | 128.5 | 113.5 |
Limit switch
Control boxes available
Cable lengths
Stroke lengths
Front and rear fixture
Installation size
RAL colors
Accuracy of speed or current: ±15%, in general, applications in the dashed are not recommended.
