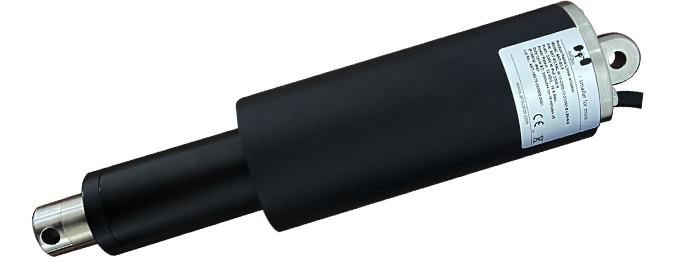

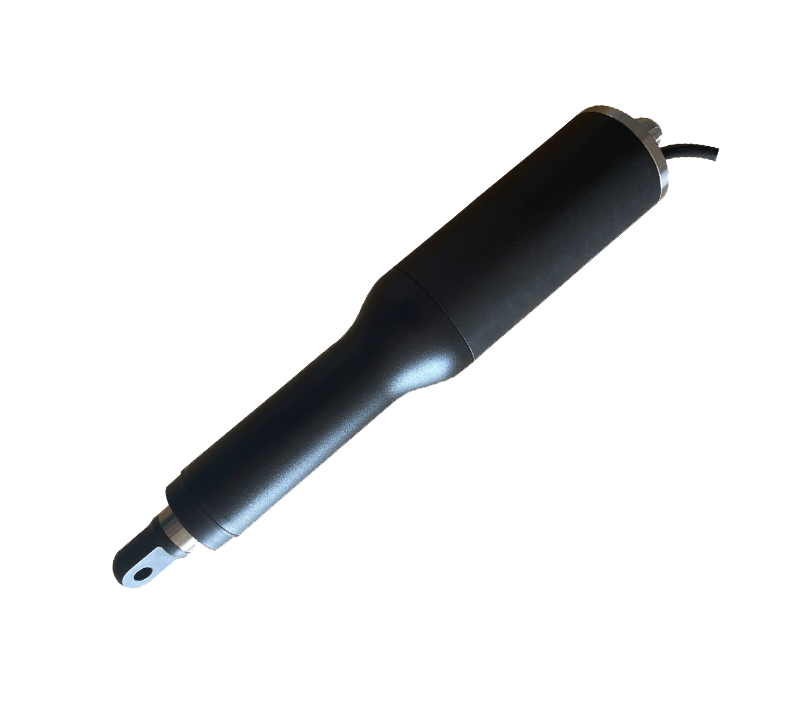

Precision-engineered for quiet operation, the Antuator trim tab actuator combines a non-hydraulic, maintenance-free design.
Equipped with a strong planetary gearbox, the ANT-63 ensures long-term durability, even under high load on the trim tab.
Internal limit switches at both ends provide protection, guaranteeing reliable performance.
Fully corrosion-resistant and waterproof (IP67M), the ANT-63 eliminates the risks of oil leaks associated with hydraulic trim tabs.
5-year warranty for peace of mind.
Model | ANT-63AL-01 | ANT-63AL-02 | ANT-63AL-03 | ANT-63AL-04 |
Voltage(DC) | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
Stroke | 57mm(2-1/4’’) | 57mm(2-1/4’’) | 108mm(4-1/4’’) | 108mm(4-1/4’’) |
Length from hole to hole | 265mm(10-1/2’’) | 292mm(11-1/2’’) | 316mm(12-1/2’’) | 330mm(13’’) |
Load capacity | 2300N/507lbs | 2300N/507lbs | 2300N/507lbs | 2300N/507lbs |
Speed | 12mm/s(0.47’’/s) | 12mm/s(0.47’’/s) | 12mm/s(0.47’’/s) | 12mm/s(0.47’’/s) |
Top hole size | 8mm(5/16’’) or 9.5mm(3/8’’) | 8mm(5/16’’) | 8mm(5/16’’) or 9.5mm(3/8’’) | 8mm(5/16’’) |
End hole size | 8mm(5/16’’) | 8mm(5/16’’) | 8mm(5/16’’) | 8mm(5/16’’) |
Standard cable length | 2000mm(79’’) | 2000mm(79’’) | 2000mm(79’’) | 2000mm(79’’) |
Limit switch
Control boxes available
Cable lengths
Stroke lengths
Front and rear fixture

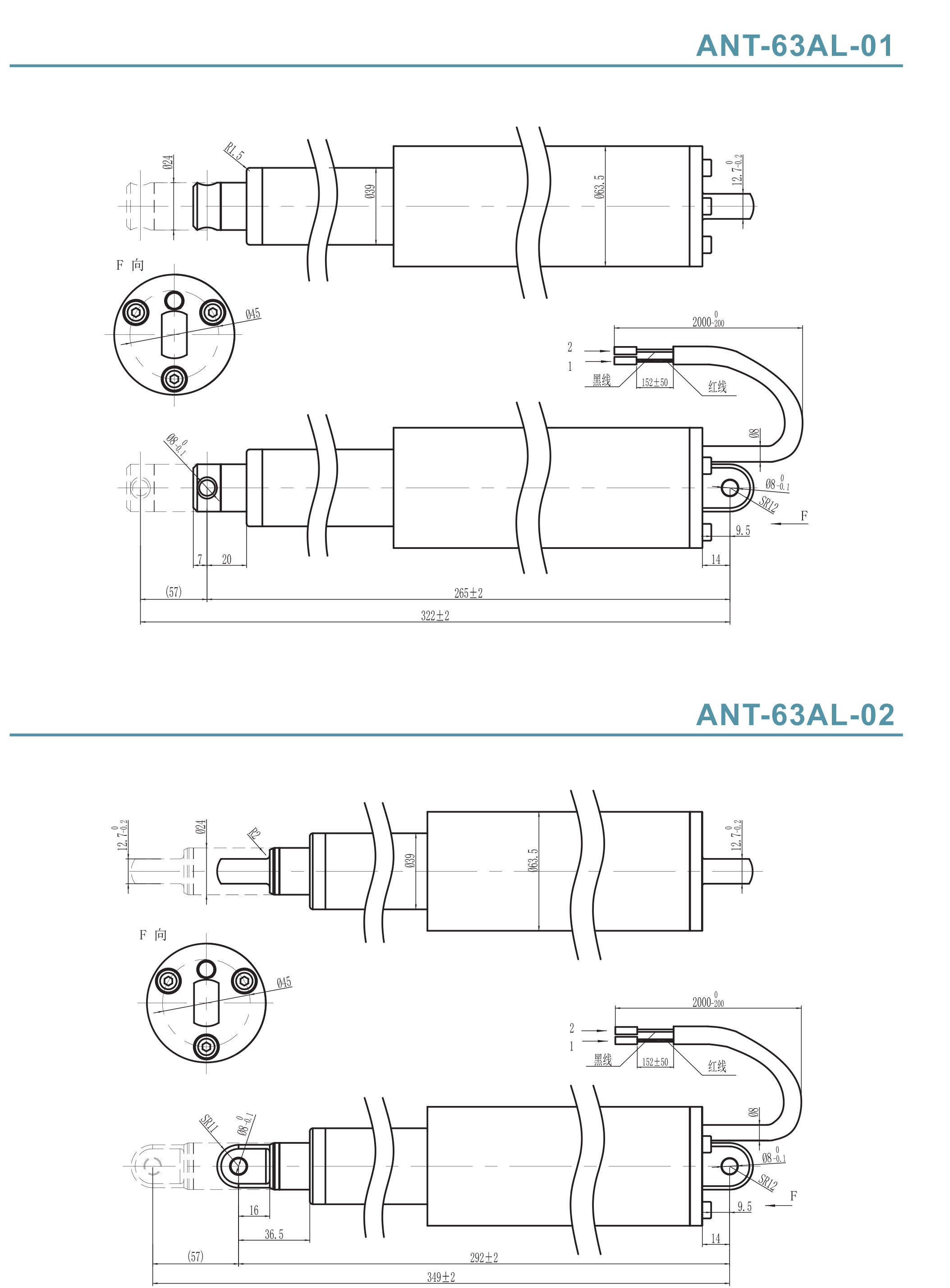

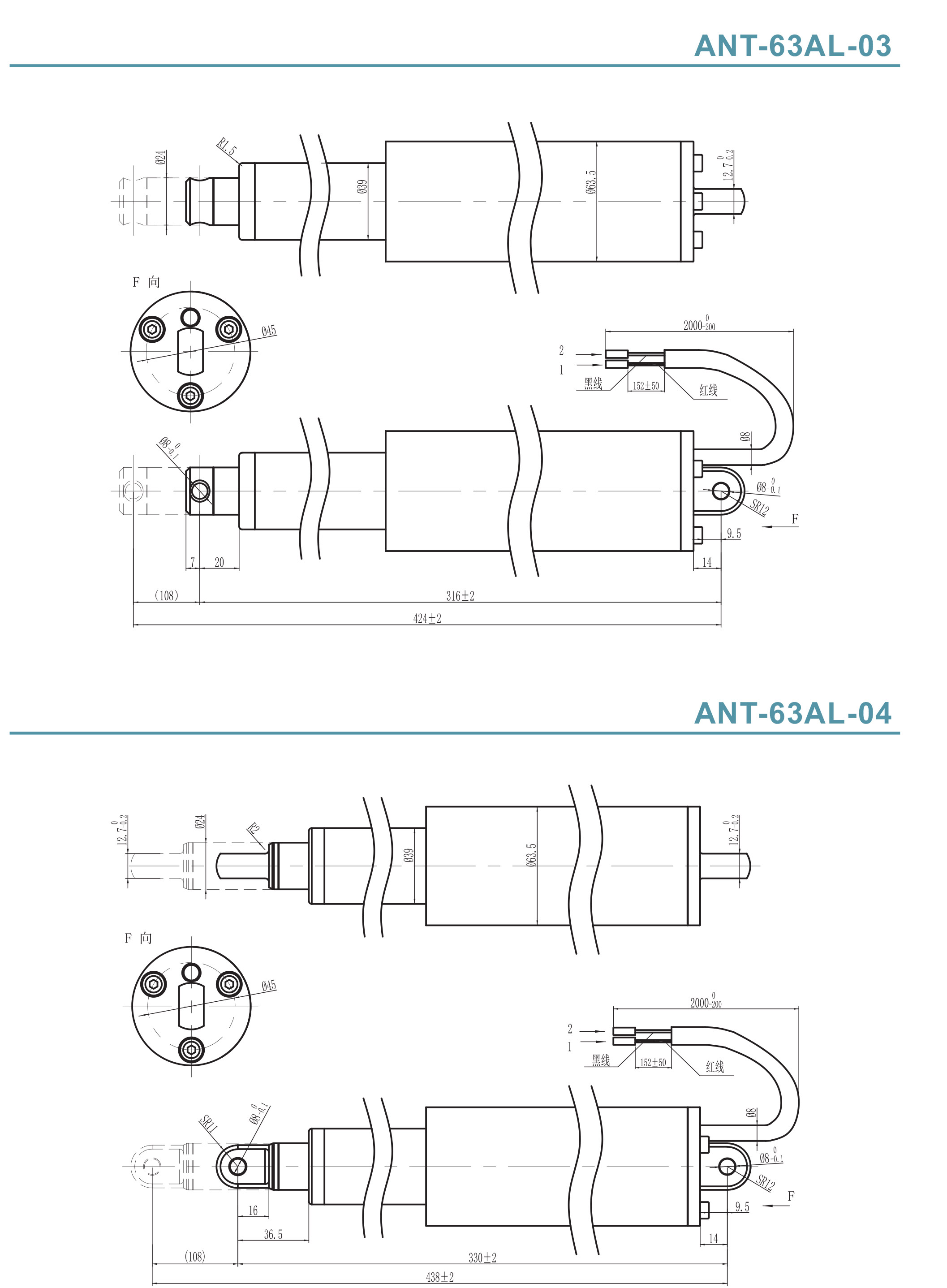

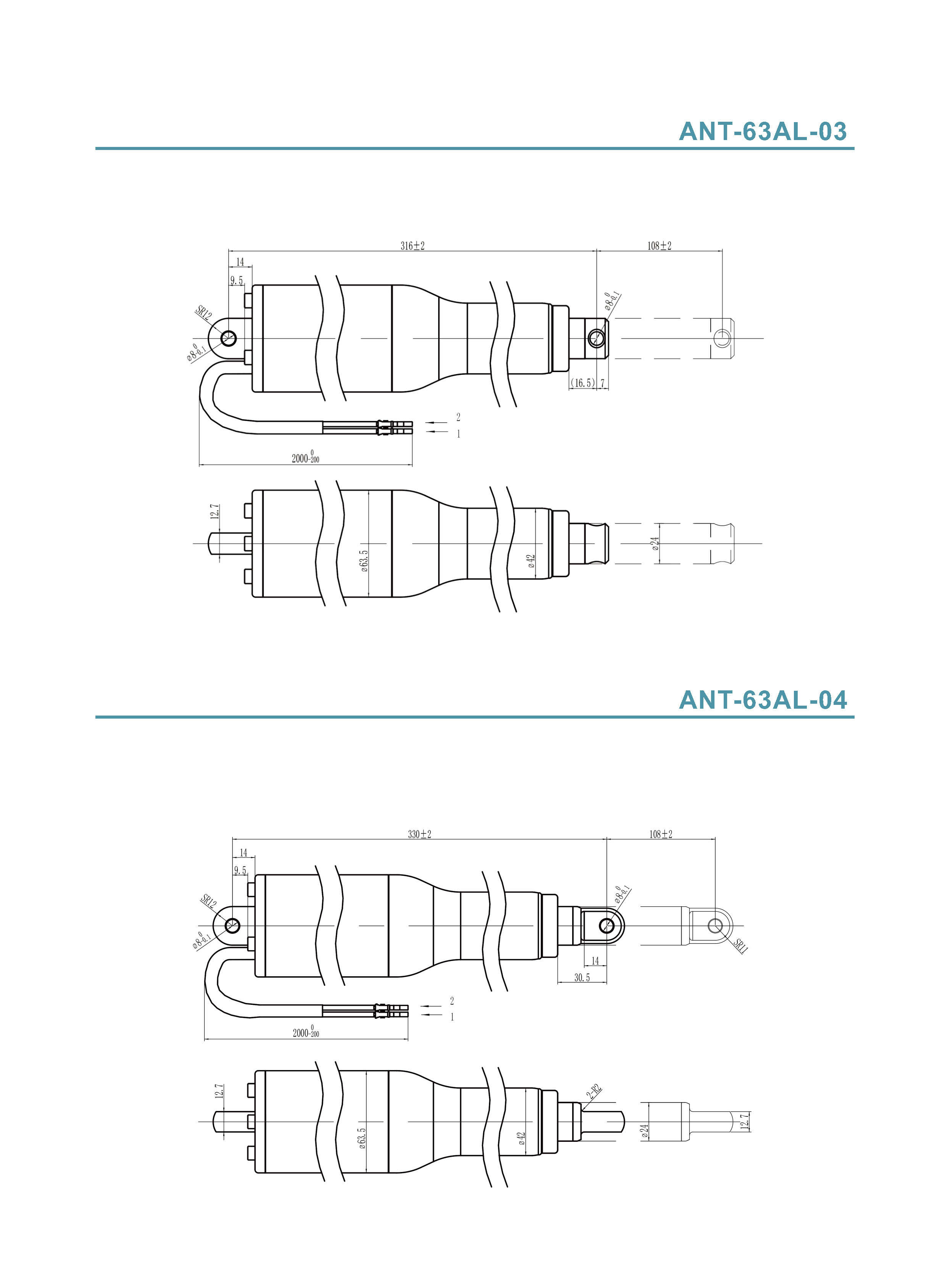

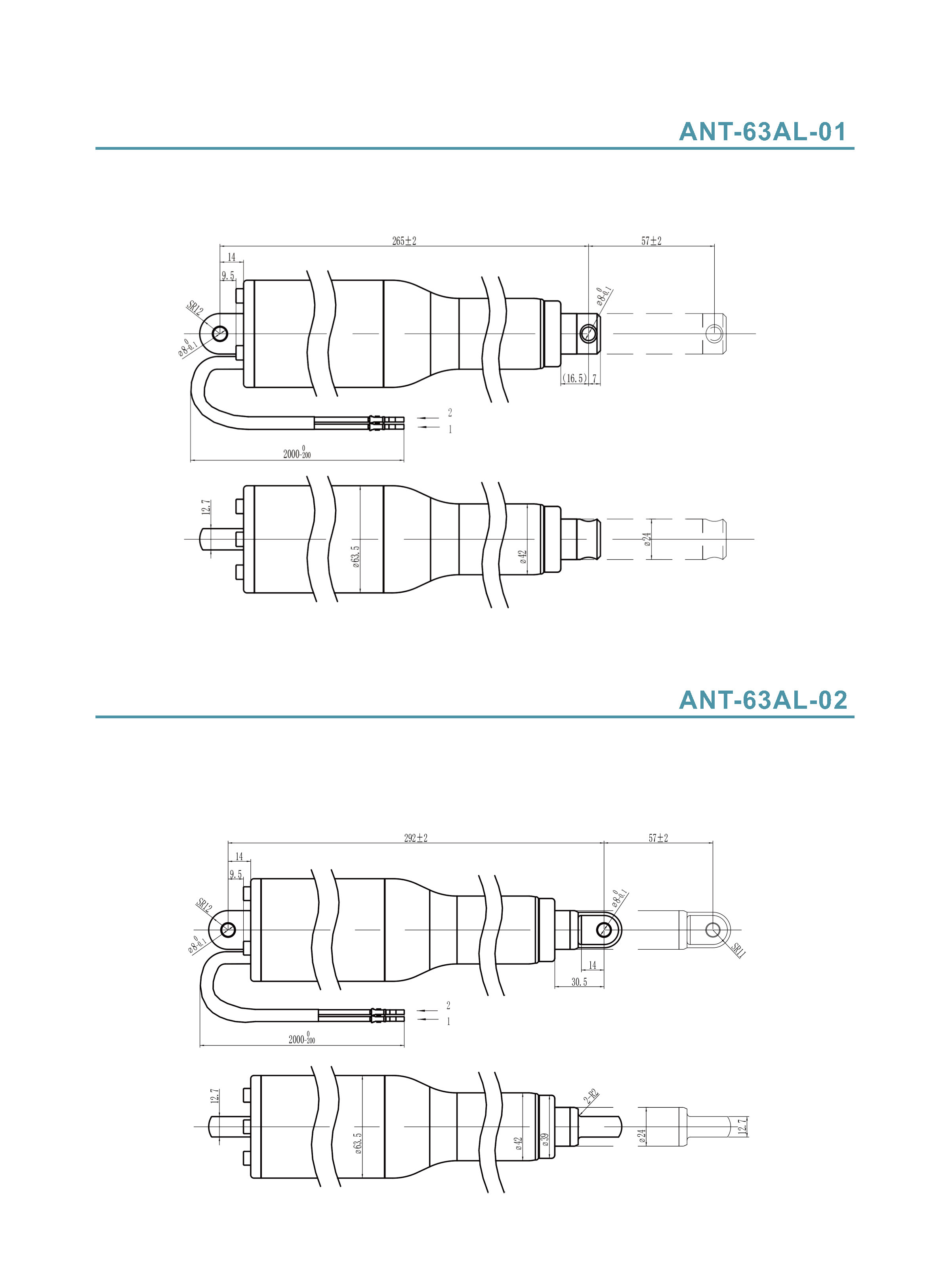

Installation size
RAL colors
