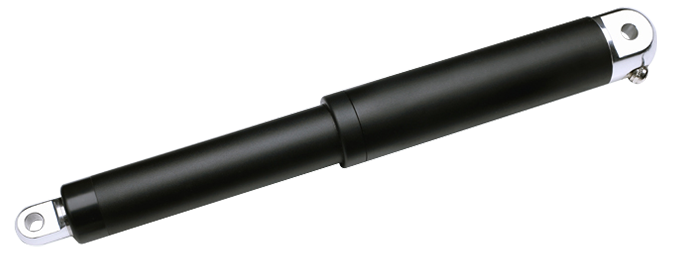

ANT-52 is a high-performance in-line linear actuator with a max load capacity of 6000N.
Featuring a sleek design, high load capacity, IP67M waterproof protection, and synchronous operation, the ANT-52 is perfect for outdoor applications where the actuator will be visible.
Ideal for skylights, smoke vent systems, yacht automation, and agricultural machinery applications.
Voltage(V) | 12V | 24V | IP rating | IP66/IP67M |
No-load current(A) | ≤1.6A | ≤0.8A | Operating temperature(℃) | -20~60(℃) |
Load current(A) | ≤10A | ≤5A | Storage temperature(℃) | -40~70(℃) |
Max. power(W) | 120W | Noise on load (dB) | 75dB | |

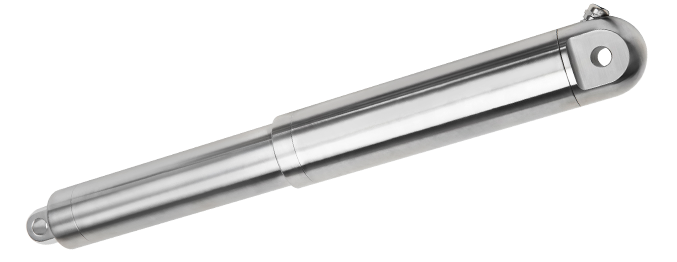

Material of outer tube | 6063Aluminium/316 stainless steel | Backlash (mm) | 0.5-1 | |
Material of lead screw | Trapezoid,Steel | Colour | Black/Sliver | |
Material of piston rod | 316 stainless steel | Certification | CE,RoHS | |
Material of the nut | Engineering plastic | Wire connection | Bare wire/4 or 6 pins connector | |
Working duty(S2) | Work 2 minutes and rest 18 minutes | End mounting | O type | |
Life time(cycles) | ≥10K | Wire length(m) | 1.5 | |

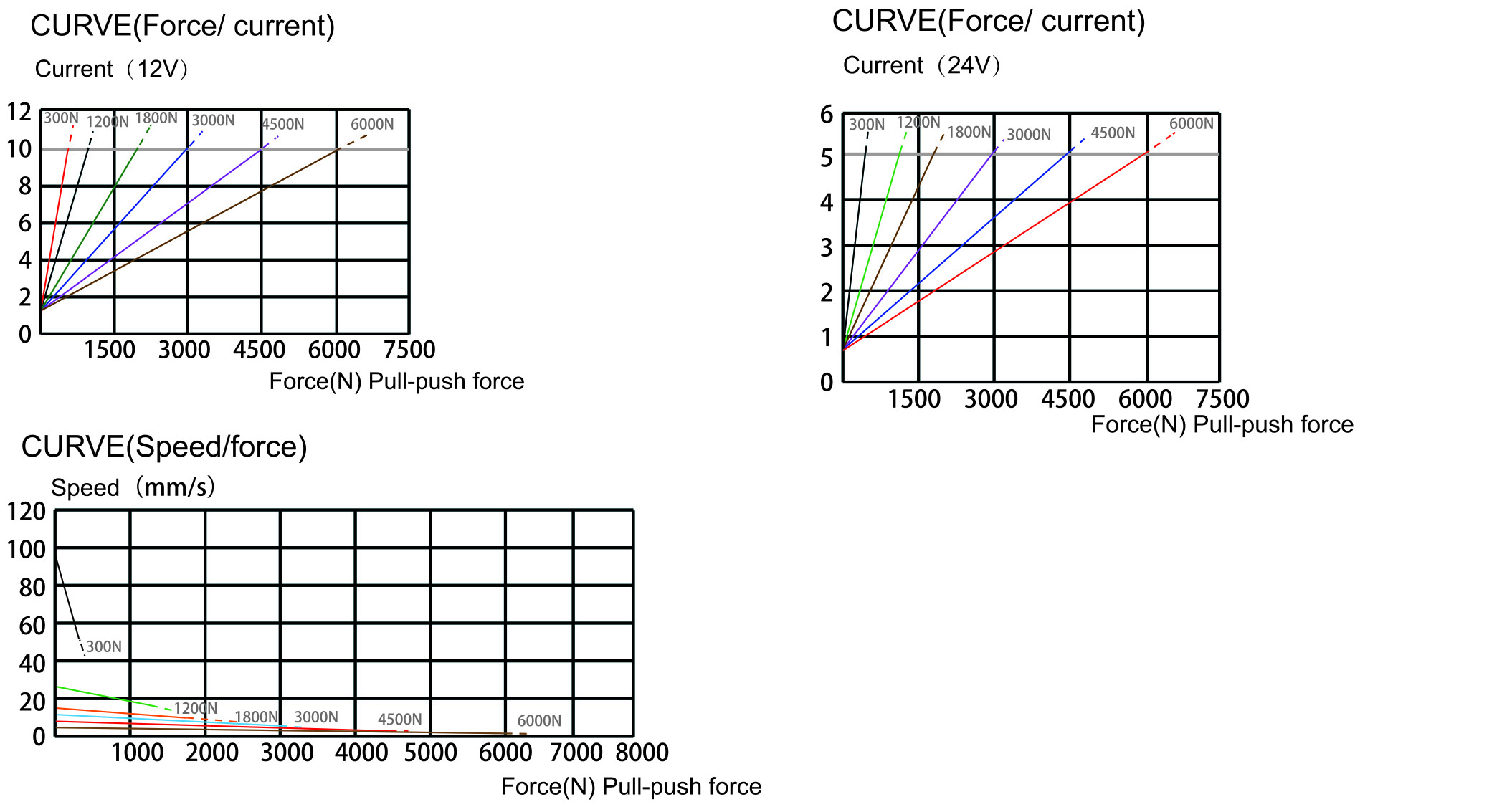

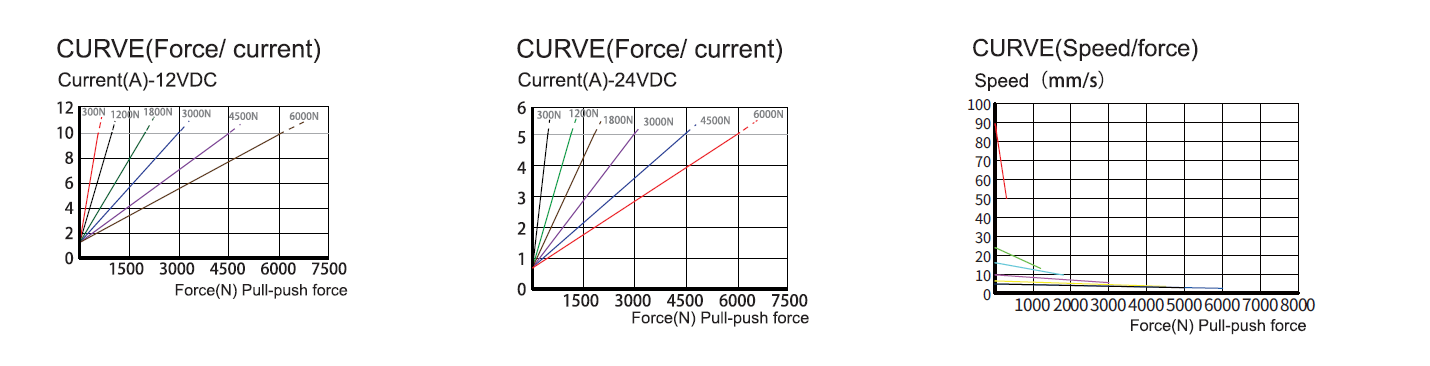

Max load | 300N | 1200N | 1800N | 3000N | 4500N | 5000N | 6000N |
Self-locking force | 600N | 2400N | 3600N | 6000N | 8000N | 7500N | 8000N |
No-load speed | 88mm/s | 24 mm/s | 16 mm/s | 9.6 mm/s | 6.4 mm/s | 4.8 mm/s | 4.8 mm/s |
Load speed | 55 mm/s | 15 mm/s | 10mm/s | 6 mm/s | 4.5 mm/s | 3.3 mm/s | 3 mm/s |
Stroke(mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
1.8 | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | 2.5 |
lPush only function is optional.
lOutput limit switches wires is optional.
lThe max load of ANT-52 12V is 5000N.
lCustomized stroke lengths are available.
lThe min stroke:20mm,the max stroke:500mm.
lThe stroke’s precision is ±2mm.

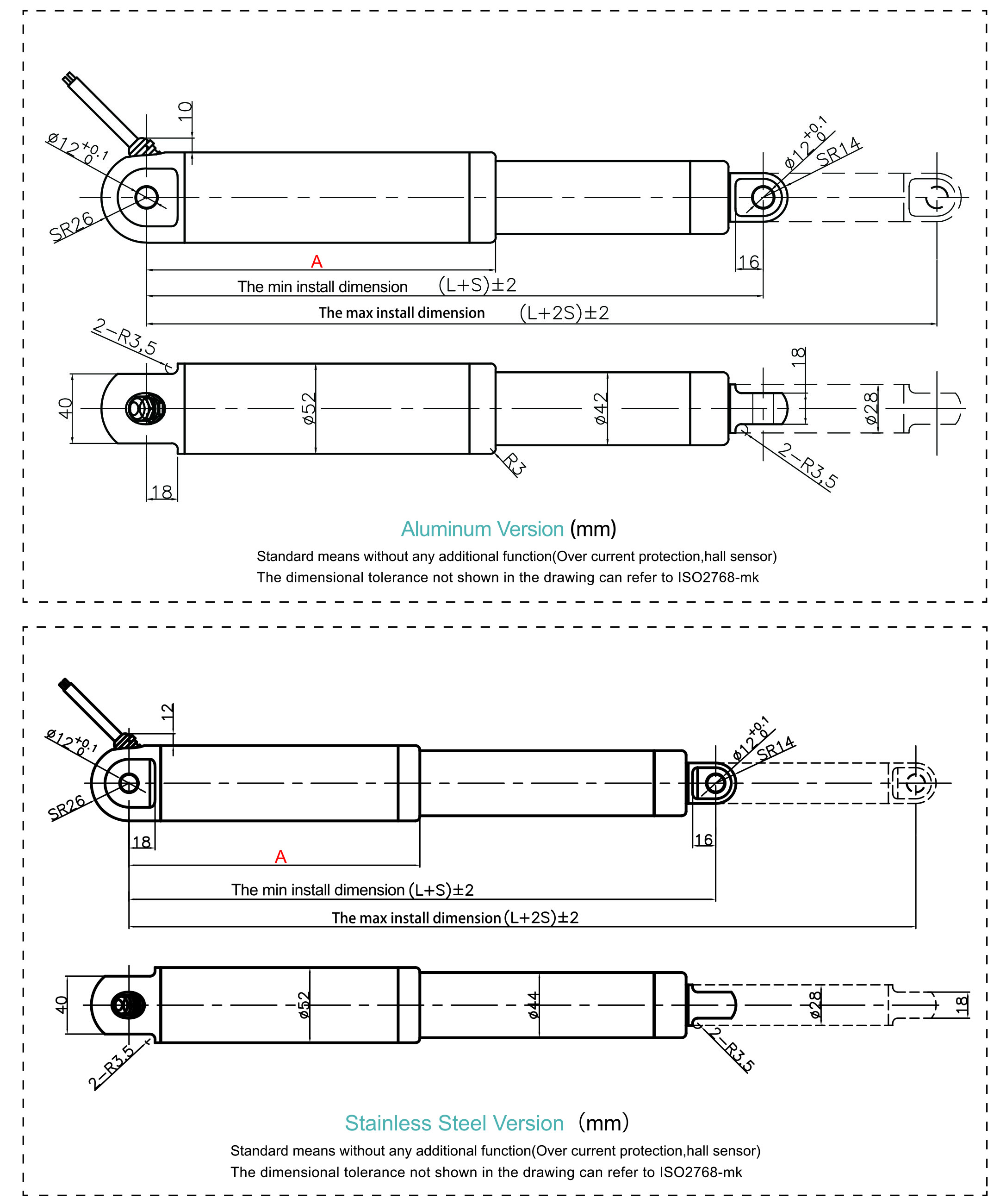

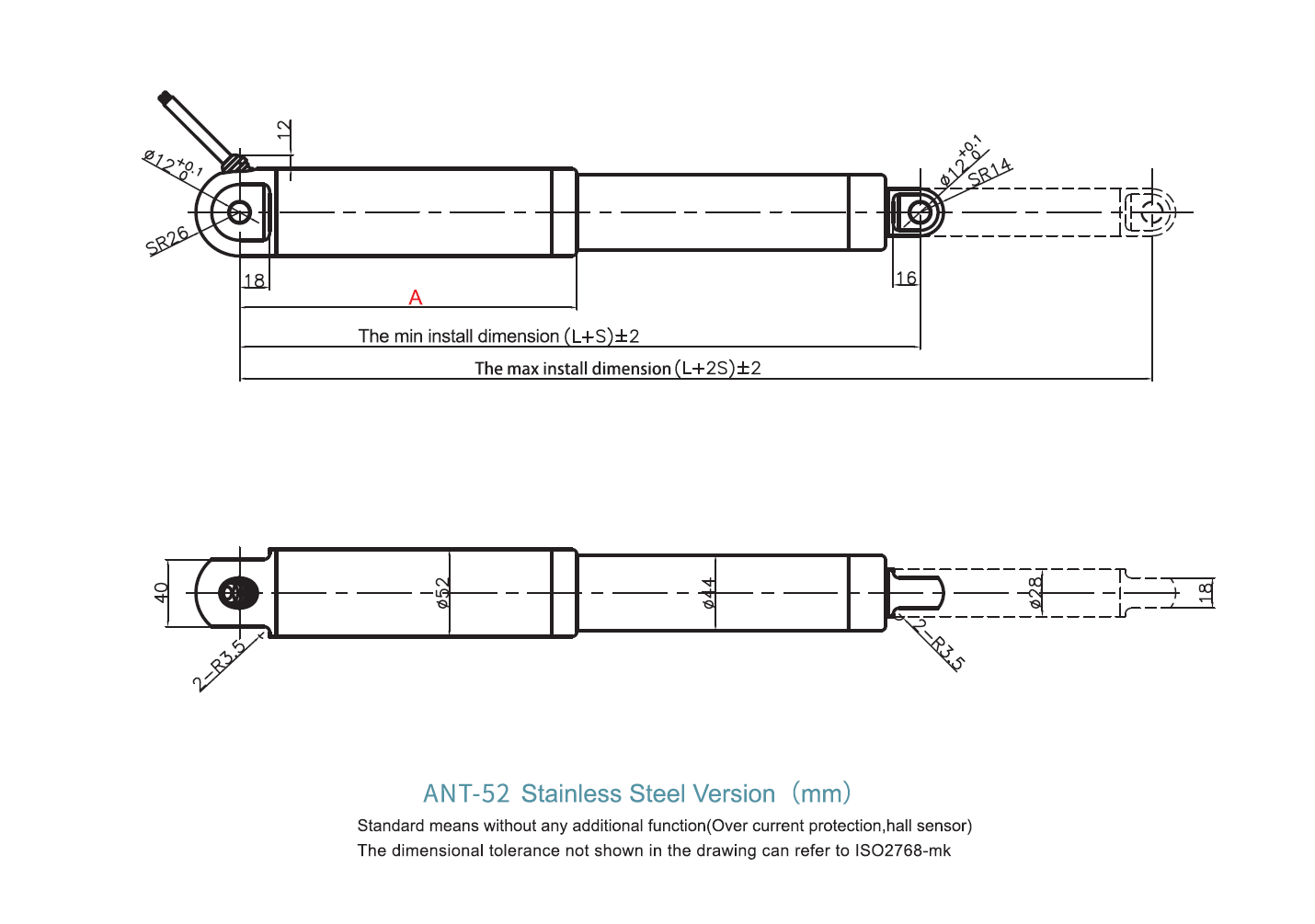

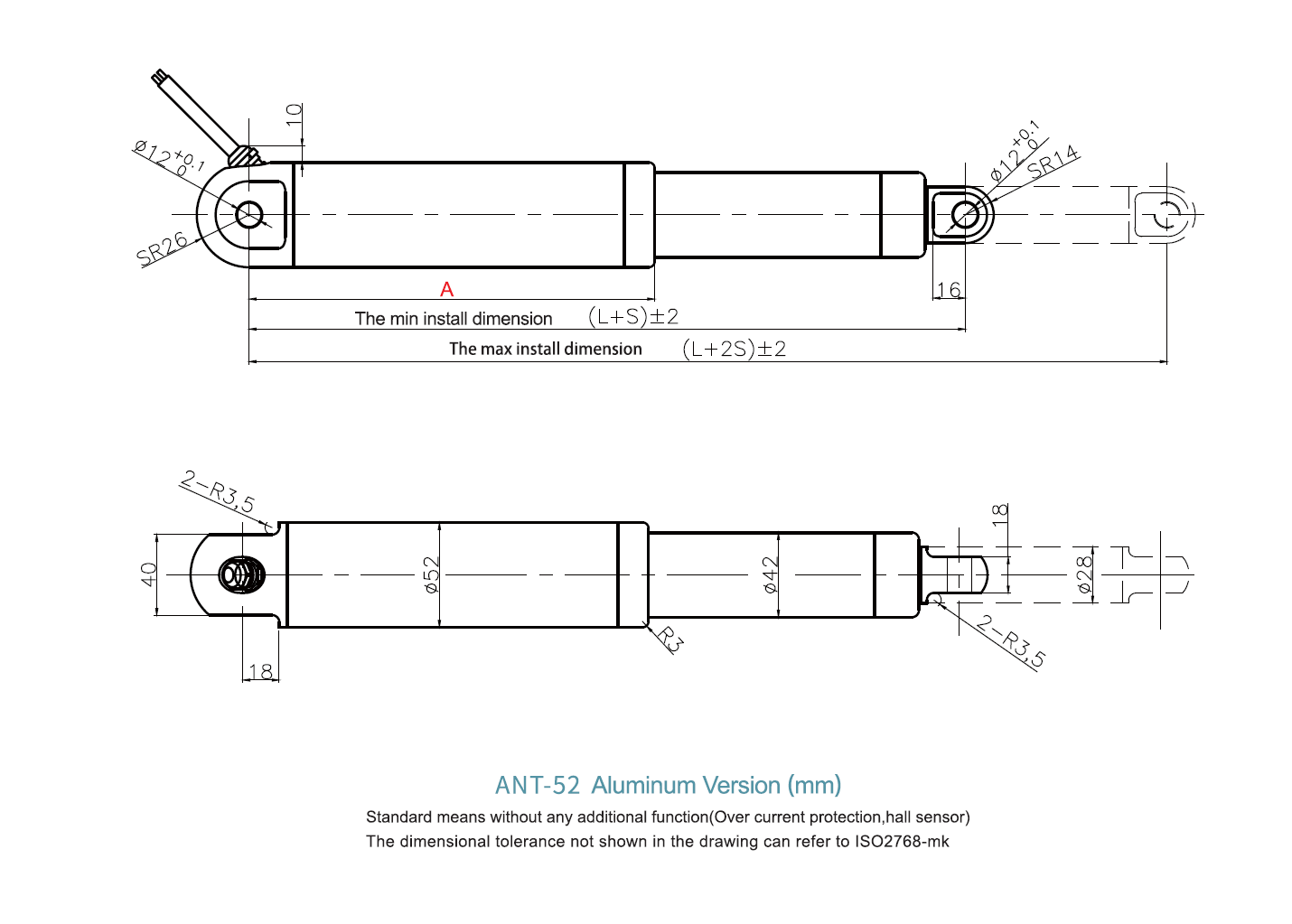

ANT-52 Min. Install dimension | (mm) | Limit switch | Hall sensor | Over current protection |
L+S | 305+S | 325+S | 325+S | |
A | 201 | 221 | 221 |
lFor IP67M/IP69K actuators, the min. install length will be 20mm longer.
Limit switch
Control boxes available
Cable lengths
Stroke lengths
Front and rear fixture
Installation size
RAL colors
Accuracy of speed or current: ±15%, in general, applications in the dashed are not recommended.
