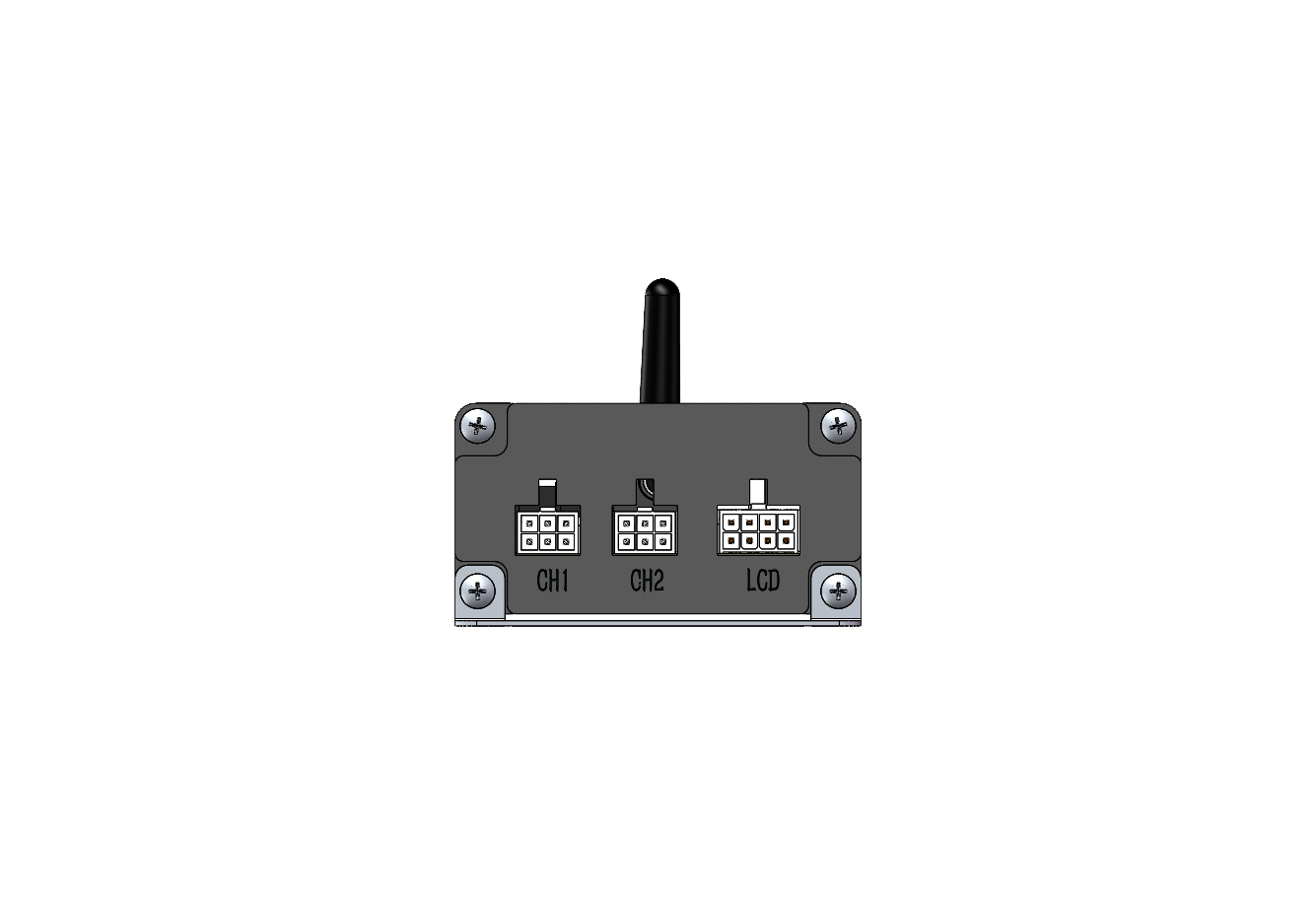

The ANT-11 series 2-channel controllers are intelligent, high-precision synchronous controllers designed for ANTUATOR actuators with Hall sensors. Available in two models—ANT-11-P2 and ANT-11-S2—these controllers enable precise synchronization of two actuators for extension, retraction, and stopping functions. They integrate advanced software and hardware protections, including overcurrent, overvoltage, undervoltage, Hall signal detection, and synchronization error reporting, ensuring high reliability and safety across various applications such as outdoor, industrial, and vehicle environments. Additionally, both models support a dedicated touchscreen programmer with flexible parameter settings, allowing users to efficiently configure different actuator models. With a built-in standard MODBUS protocol, the ANT-11 controllers simplify automation system integration, making them highly adaptable for diverse application scenarios and further development needs.
Power supply input voltage | |||
Quiescent current | Max 200mA | ||
Drive capability | ≤15A*2 channels @Work duty S3（Work 2 minutes，stop 18 minutes） | ||
Overcurrent protection/Overvoltage protection /Undervoltage protection | Support | ||
Hall sensor signal loss detection | Support | ||
Workable actuator quantity | ≤2 | ||
Actuator cable length | ≤10m | ||
Workable actuator models | ANT-26/ANT-35/ANT-38/ANT-45/ANT-52, with Hall sensor | ||
Actuators synchronization accuracy | ±5mm/10000 cycles | ||
| Remote control type | 433.92M@FSK | ||
| Max allowed paired remote control qunatity | 2 | ||
| Remote control distance | ≤20m | ||
| Hall sensor working voltage | DC5V | ||
| Touch screen programmer communication type | RS485, power voltage 12V | ||
| User communication interface | RS485, Format 9600/8/N/1, Protocol MODBUS | ||
| Rocker switch interface | Switch type input | ||
| Working temperature | -20℃ - 70℃ | ||
| Working humidity | 75% | ||
| Waterproof level | IP54 | ||
| Housing material | Aluminum Alloy | ||
| Sizes | 170mm(L)*103mm(W)*33.4mm(H) |
